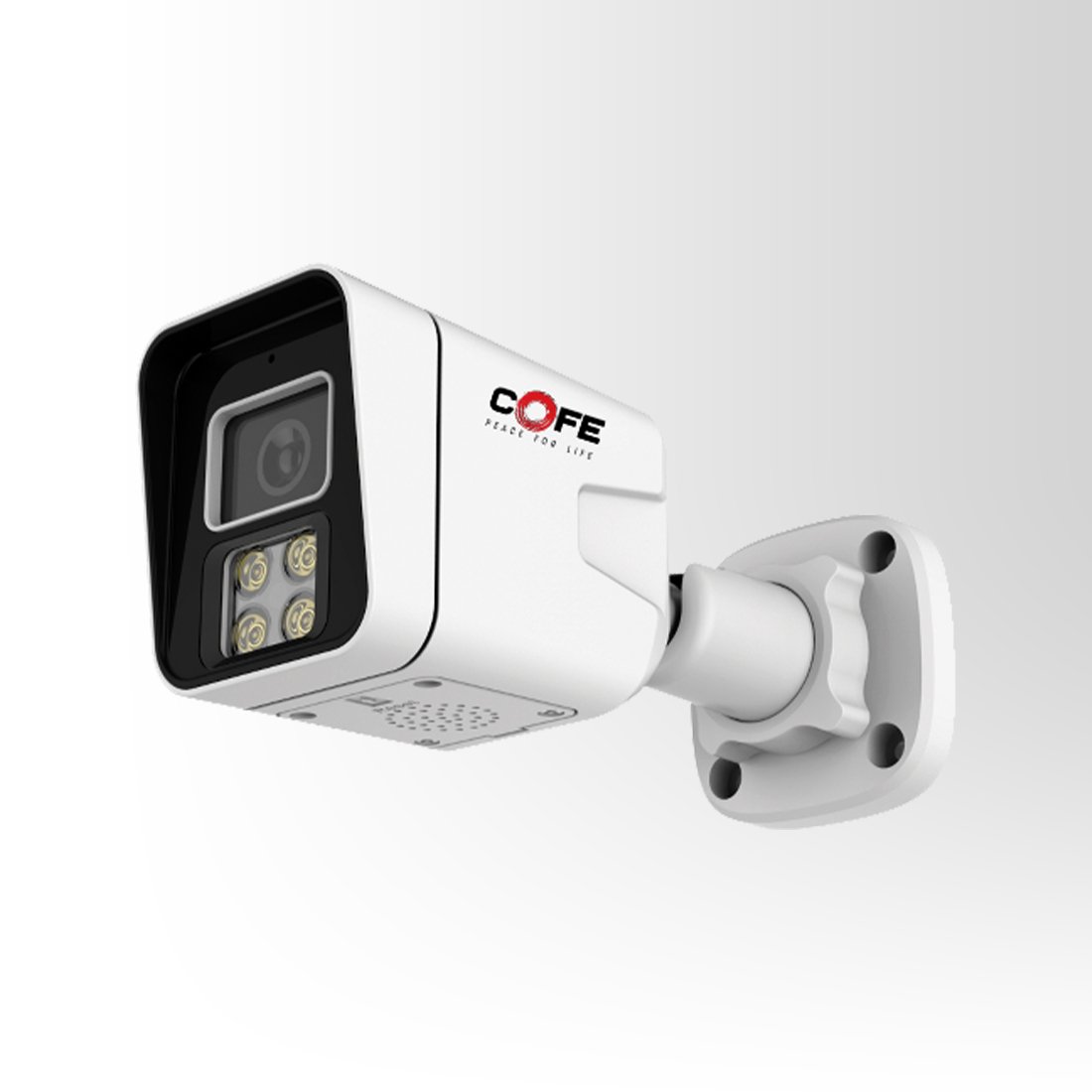

COFE-MHD-BP02
Technical parameter
Camera
| Image Sensor | 2.4MP/5MP/8MP 1/3" CMOS sensor |
| Signal | XVI/AHD/TVI/CVI |
| Min. Illumination | Color：0.01Lux @(F1.2,AGC ON); 0 Lux with IR B/W: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter Time | 1/50(1/60)s to 1/10,000s |
| Lens | HD lens 4mm @F2.2（6mm, 8mm optional) |
| Day & Night | IR-Cut Filter with auto-Switching |
General
| Temperature | 00C -+ 550C |
| Humidity | 10%-90% RH |
| Power Supply | DC12V±10% |
| IR range | 4 Array lamp“IR2”:20-30 meters |
Interface
| Video output | 1Vp-p Composite Output(75Ω/BNC) |
| Audio I/O | 1/1, Support coaxial audio |
